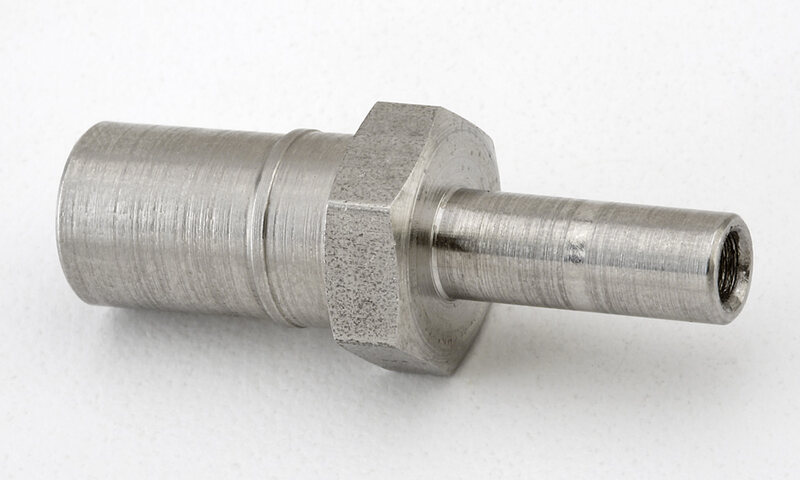

Tube End

Part NumberTFT16-16-3

Hose Dash Size-16

Tube Size O.D. (in.)1

Overall Length A (in.)2.743

Nomical I.D. (in.)0.812

Deduct Length D (in.)1.153

Quote Request Qty

Part NumberTFT12-12-3

Hose Dash Size-12

Tube Size O.D. (in.)3/4

Overall Length A (in.)2.35

Nomical I.D. (in.)0.578

Deduct Length D (in.)1.61

Quote Request Qty

Part NumberTFT08-08-3

Hose Dash Size-08

Tube Size O.D. (in.)1/2

Overall Length A (in.)2.17

Nomical I.D. (in.)0.359

Deduct Length D (in.)1.56

Quote Request Qty

Part NumberTFT06-06-3

Hose Dash Size-06

Tube Size O.D. (in.)3/8

Overall Length A (in.)1.75

Nomical I.D. (in.)0.265

Deduct Length D (in.)1.23

Quote Request Qty

Part NumberTFT04-05-3

Hose Dash Size-05

Tube Size O.D. (in.)1/4

Overall Length A (in.)1.61

Nomical I.D. (in.)0.180

Deduct Length D (in.)1.17

Quote Request Qty

Part NumberTFT04-04-3

Hose Dash Size-04

Tube Size O.D. (in.)1/4

Overall Length A (in.)1.61

Nomical I.D. (in.)0.156

Deduct Length D (in.)1.17

Quote Request Qty

View Your Quote Request

Product Details

¹ = 37° JIC seat
² = 45° SAE seat
