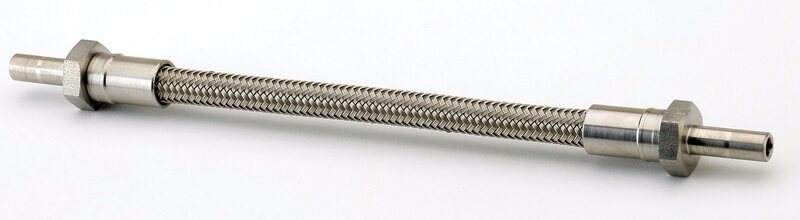

Tube End x Tube End
|
Hose Size
Hose ID
Prefix
Assembly Number
Thread Size
|
|
Hose Size
-4
Hose ID
3/16
Prefix
TFx
Assembly Number
1004
Thread Size
1/4 O.D.
|
|
Hose Size
-5
Hose ID
1/4
Prefix
TFx
Assembly Number
1005
Thread Size
1/4 O.D.
|
|
Hose Size
-6
Hose ID
5/16
Prefix
TFx
Assembly Number
1006
Thread Size
3/8 O.D.
|
|
Hose Size
-8
Hose ID
13/32
Prefix
TFx
Assembly Number
1008
Thread Size
1/2 O.D.
|
|
Hose Size
-12
Hose ID
5/8
Prefix
TFx
Assembly Number
1012
Thread Size
3/4 O.D.
|
|
Hose Size
-16
Hose ID
7/8
Prefix
TFx
Assembly Number
1016
Thread Size
1" O.D.
|
|
Hose Size
-16Z
Hose ID
7/8
Prefix
TFx
Assembly Number
1016Z
Thread Size
1" O.D.
|
To add hose assemblies to quote request, provide the following:
1. Item Qty
2. Letter Prefix
TFB = Brass Fittings
TFZ = Carbon Steel Fitting
TF3 = Stainless Steel Fittings
3. Assembly Number
4. Length in Inches
Example: 5 x TFB905-82" (5 x SS braided -5 hose with 1/2-20 Brass JIC Swivel each end 82" OAL.)
$100.00
