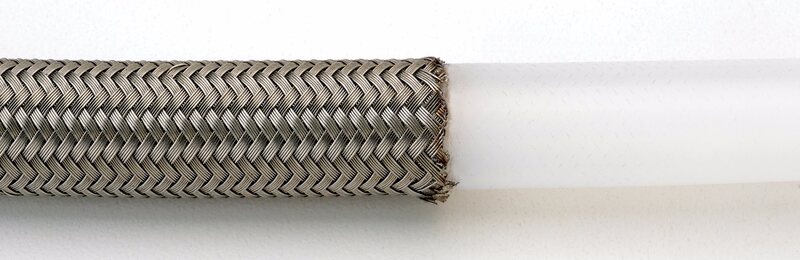

PTFE Smooth Bore Hose

Grouped product items
Product	Qty
Hose Part Number Tube Wall (in.) Hose Dash Size Average I.D. (in.) Average O.D. (in.) Working Pressure (psi) 70°F Burst Pressure (psi) Min. Bend Radius (in.)*	Quote Request Qty
Hose Part NumberS1020Z Tube Wall (in.).050 Hose Dash Size-20 Average I.D. (in.)1.125 Average O.D. (in.)1.350 Working Pressure (psi)1,000 70°F Burst Pressure (psi)4,000 Min. Bend Radius (in.)*11.0	Quote Request Qty
Hose Part NumberS1016Z Tube Wall (in.).047 Hose Dash Size-16 Average I.D. (in.)0.875 Average O.D. (in.)1.100 Working Pressure (psi)1,250 70°F Burst Pressure (psi)5,000 Min. Bend Radius (in.)*7.3	Quote Request Qty
Hose Part NumberS1016 Tube Wall (in.).047 Hose Dash Size-16 Average I.D. (in.)0.875 Average O.D. (in.)1.030 Working Pressure (psi)1,000 70°F Burst Pressure (psi)4,000 Min. Bend Radius (in.)*9	Quote Request Qty
Hose Part NumberS1012 Tube Wall (in.).047 Hose Dash Size-12 Average I.D. (in.)0.625 Average O.D. (in.)0.780 Working Pressure (psi)1,250 70°F Burst Pressure (psi)5,000 Min. Bend Radius (in.)*7	Quote Request Qty
Hose Part NumberS1010 Tube Wall (in.).047 Hose Dash Size-10 Average I.D. (in.)0.500 Average O.D. (in.)0.656 Working Pressure (psi)1,500 70°F Burst Pressure (psi)6,000 Min. Bend Radius (in.)*6	Quote Request Qty
Hose Part NumberS1008 Tube Wall (in.).043 Hose Dash Size-08 Average I.D. (in.)0.406 Average O.D. (in.)0.565 Working Pressure (psi)2,000 70°F Burst Pressure (psi)8,000 Min. Bend Radius (in.)*5	Quote Request Qty
Hose Part NumberS1006 Tube Wall (in.).040 Hose Dash Size-06 Average I.D. (in.)0.312 Average O.D. (in.)0.435 Working Pressure (psi)2,500 70°F Burst Pressure (psi)10,000 Min. Bend Radius (in.)*3.5	Quote Request Qty
Hose Part NumberS1005 Tube Wall (in.).040 Hose Dash Size-05 Average I.D. (in.)0.250 Average O.D. (in.)0.375 Working Pressure (psi)3,000 70°F Burst Pressure (psi)12,000 Min. Bend Radius (in.)*2.5	Quote Request Qty
Hose Part NumberS1004 Tube Wall (in.).040 Hose Dash Size-04 Average I.D. (in.)0.187 Average O.D. (in.)0.320 Working Pressure (psi)3,000 70°F Burst Pressure (psi)12,000 Min. Bend Radius (in.)*1.7	Quote Request Qty

Product Details

* Bend Radius values at room temperature and static application.

Vacuum: Full vacuum for sizes -04 thru -12 at room temperature
(28 INCH/HG), -16 thru -20Z is (12 INCH/HG)
PVC coated hose: ask for availability
