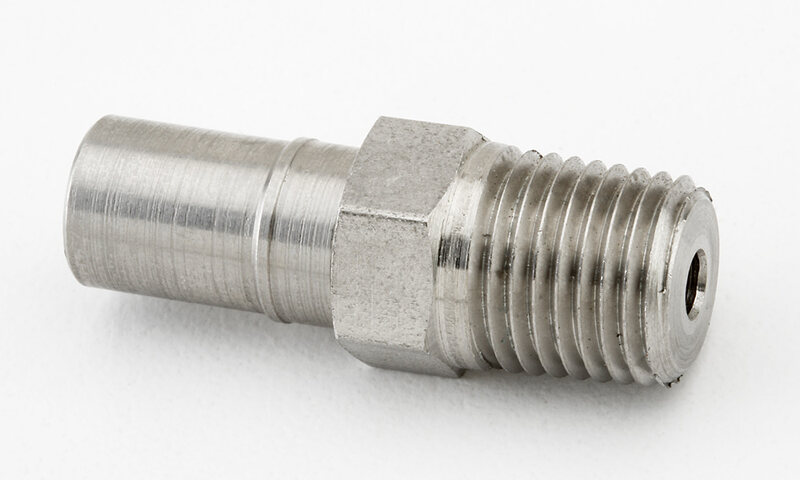

Male Pipe

Part NumberTF102-03-x
Hose Dash Size-03
Pipe Thread (NPT)1/8-27
Overall Length A (in.)1.40
Nomical I.D. (in.)0.095
Deduct Length D (in.).96
Part NumberTF102-04-x
Hose Dash Size-04
Pipe Thread (NPT)1/8-27
Overall Length A (in.)1.42
Nomical I.D. (in.)0.156
Deduct Length D (in.).98
Part NumberTF104-04-x
Hose Dash Size-04
Pipe Thread (NPT)1/4-18
Overall Length A (in.)1.54
Nomical I.D. (in.)0.156
Deduct Length D (in.)1.10
Part NumberTF102-05-x
Hose Dash Size-05
Pipe Thread (NPT)1/8-27
Overall Length A (in.)1.42
Nomical I.D. (in.)0.201
Deduct Length D (in.)1.10
Part NumberTF104-05-x
Hose Dash Size-05
Pipe Thread (NPT)1/4-18
Overall Length A (in.)1.54
Nomical I.D. (in.)0.201
Deduct Length D (in.)1.10
Part NumberTF104-06-x
Hose Dash Size-06
Pipe Thread (NPT)1/4-18
Overall Length A (in.)1.62
Nomical I.D. (in.)0.265
Deduct Length D (in.)1.10
Part NumberTF106-06-x
Hose Dash Size-06
Pipe Thread (NPT)3/8-18
Overall Length A (in.)1.72
Nomical I.D. (in.)0.265
Deduct Length D (in.)1.21
Part NumberTF106-08-x
Hose Dash Size-08
Pipe Thread (NPT)3/8-18
Overall Length A (in.)1.90
Nomical I.D. (in.)0.359
Deduct Length D (in.)1.28
Part NumberTF108-08-x
Hose Dash Size-08
Pipe Thread (NPT)1/2-14
Overall Length A (in.)2.07
Nomical I.D. (in.)0.359
Deduct Length D (in.)1.46
Part NumberTF108-10-x
Hose Dash Size-10
Pipe Thread (NPT)1/2-14
Overall Length A (in.)2.16
Nomical I.D. (in.)0.453
Deduct Length D (in.)1.49
Part NumberTF112-12-x
Hose Dash Size-12
Pipe Thread (NPT)3/4-14
Overall Length A (in.)2.38
Nomical I.D. (in.)0.578
Deduct Length D (in.)1.64
Part NumberTF116-16-x
Hose Dash Size-16
Pipe Thread (NPT)1-11½
Overall Length A (in.)2.85
Nomical I.D. (in.)0.812
Deduct Length D (in.)1.69
Part NumberTF120-20-x
Hose Dash Size-20Z
Pipe Thread (NPT)1¼-11½
Overall Length A (in.)3.03
Nomical I.D. (in.)1.00
Deduct Length D (in.)1.83
