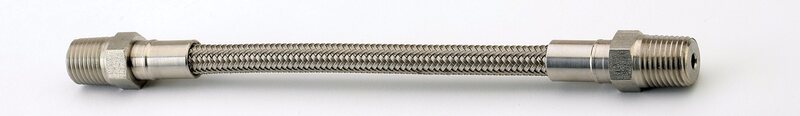

Male Pipe x Male Pipe
Hose Size-3
Hose ID5/32
PrefixTFx
Assembly Number303
Thread Size1/8-27
Hose Size-4
Hose ID3/16
PrefixTFx
Assembly Number304
Thread Size1/8-27
Hose Size-4
Hose ID3/16
PrefixTFx
Assembly Number404
Thread Size1/4-18
Hose Size-5
Hose ID1/4
PrefixTFx
Assembly Number305
Thread Size1/4-18
Hose Size-6
Hose ID5/16
PrefixTFx
Assembly Number306
Thread Size1/4-18
Hose Size-6
Hose ID5/16
PrefixTFx
Assembly Number406
Thread Size3/8-18
Hose Size-8
Hose ID13/32
PrefixTFx
Assembly Number308
Thread Size3/8-18
Hose Size-8
Hose ID13/32
PrefixTFx
Assembly Number408
Thread Size1/2-14
Hose Size-10
Hose ID1/2
PrefixTFx
Assembly Number310
Thread Size1/2-14
Hose Size-12
Hose ID5/8
PrefixTFx
Assembly Number312
Thread Size3/4-14
Hose Size-16
Hose ID7/8
PrefixTFx
Assembly Number316
Thread Size1-11.5
Hose Size-16Z
Hose ID7/8
PrefixTFx
Assembly Number316Z
Thread Size1-11.5
Hose Size-20Z
Hose ID1.125
PrefixTFx
Assembly Number320Z
Thread Size1¼-11.5
To add hose assemblies to quote request, provide the following:
1. Item Qty
2. Letter Prefix
TFB = Brass Fittings
TFZ = Carbon Steel Fitting
TF3 = Stainless Steel Fittings
3. Assembly Number
4. Length in Inches
Example: 5 x TFB905-82" (5 x SS braided -5 hose with 1/2-20 Brass JIC Swivel each end 82" OAL.)
