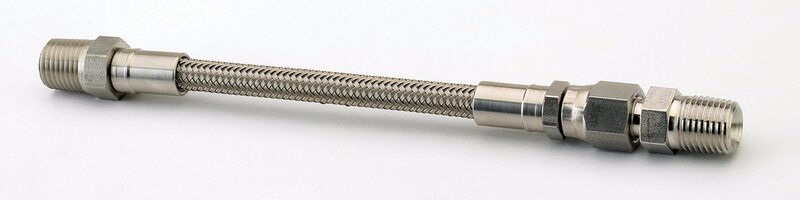

Male Pipe x Male Pipe Union
|
Hose Size
Hose ID
Prefix
Assembly Number
Thread Size
|
|
Hose Size
-3
Hose ID
5/32
Prefix
TFx
Assembly Number
703
Thread Size
1/8-27 - 1/8-27
|
|
Hose Size
-4
Hose ID
3/16
Prefix
TFx
Assembly Number
704
Thread Size
1/8-27 - 1/8-27
|
|
Hose Size
-4
Hose ID
3/16
Prefix
TFx
Assembly Number
804
Thread Size
1/4-18 - 1/4-18
|
|
Hose Size
-5
Hose ID
1/4
Prefix
TFx
Assembly Number
705
Thread Size
1/4-18 - 1/4-18
|
|
Hose Size
-6
Hose ID
5/16
Prefix
TFx
Assembly Number
706
Thread Size
1/4-18 - 1/4-18
|
|
Hose Size
-6
Hose ID
5/16
Prefix
TFx
Assembly Number
806
Thread Size
3/8-18 - 3/8-18
|
|
Hose Size
-8
Hose ID
13/32
Prefix
TFx
Assembly Number
708
Thread Size
3/8-18 - 3/8-18
|
|
Hose Size
-8
Hose ID
13/32
Prefix
TFx
Assembly Number
808
Thread Size
1/2-14 - 1/2-14
|
|
Hose Size
-10
Hose ID
1/2
Prefix
TFx
Assembly Number
710
Thread Size
1/2-14 - 1/2-14
|
|
Hose Size
-12
Hose ID
5/8
Prefix
TFx
Assembly Number
712
Thread Size
3/4-14 - 3/4-14
|
|
Hose Size
-16
Hose ID
7/8
Prefix
TFx
Assembly Number
716
Thread Size
1-11.5 - 1-11.5
|
|
Hose Size
-16Z
Hose ID
7/8
Prefix
TFx
Assembly Number
716Z
Thread Size
1-11.5 - 1-11.5
|
|
Hose Size
-20Z
Hose ID
1.125
Prefix
TFx
Assembly Number
720Z
Thread Size
1¼-11.5 - 1¼-11.5
|
To add hose assemblies to quote request, provide the following:
1. Item Qty
2. Letter Prefix
TFB = Brass Fittings
TFZ = Carbon Steel Fitting
TF3 = Stainless Steel Fittings
3. Assembly Number
4. Length in Inches
Example: 5 x TFB905-82" (5 x SS braided -5 hose with 1/2-20 Brass JIC Swivel each end 82" OAL.)
$100.00
