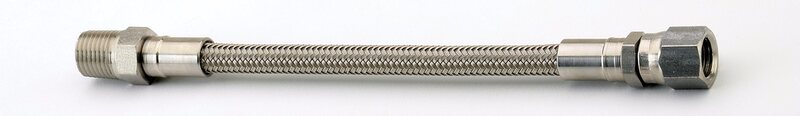

Male Pipe x JIC Swivel
Hose Size
Hose ID
Prefix
Assembly Number
Thread Size
|
Hose Size
-3
Hose ID
5/32
Prefix
TFx
Assembly Number
103
Thread Size
1/8-27 - 3/8-24
|
Hose Size
-4
Hose ID
3/16
Prefix
TFx
Assembly Number
104
Thread Size
1/8-27 - 7/16-20
|
Hose Size
-4
Hose ID
3/16
Prefix
TFx
Assembly Number
204
Thread Size
1/4-18 - 7/16-20
|
Hose Size
-5
Hose ID
1/4
Prefix
TFx
Assembly Number
105
Thread Size
1/4-18 - 1/2-20
|
Hose Size
-6
Hose ID
5/16
Prefix
TFx
Assembly Number
106
Thread Size
1/4-18 - 9/16-18
|
Hose Size
-6
Hose ID
5/16
Prefix
TFx
Assembly Number
206
Thread Size
3/8-18 - 9/16-18
|
Hose Size
-8
Hose ID
13/32
Prefix
TFx
Assembly Number
108
Thread Size
3/8-18 - 3/4-16
|
Hose Size
-8
Hose ID
13/32
Prefix
TFx
Assembly Number
208
Thread Size
1/2-14 - 3/4-16
|
Hose Size
-10
Hose ID
1/2
Prefix
TFx
Assembly Number
110
Thread Size
1/2-14 - 7/8-14
|
Hose Size
-12
Hose ID
5/8
Prefix
TFx
Assembly Number
112
Thread Size
3/4-14 - 1 1/16-24
|
Hose Size
-16
Hose ID
7/8
Prefix
TFx
Assembly Number
116
Thread Size
1-11.5 - 1 5/16-12
|
Hose Size
-16Z
Hose ID
7/8
Prefix
TFx
Assembly Number
116Z
Thread Size
1-11.5 - 1 5/16-12
|
Hose Size
-20Z
Hose ID
1.125
Prefix
TFx
Assembly Number
120Z
Thread Size
1¼-11.5 - 1 5/8-12
|
To add hose assemblies to quote request, provide the following:
1. Item Qty
2. Letter Prefix
TFB = Brass Fittings
TFZ = Carbon Steel Fitting
TF3 = Stainless Steel Fittings
3. Assembly Number
4. Length in Inches
Example: 5 x TFB905-82" (5 x SS braided -5 hose with 1/2-20 Brass JIC Swivel each end 82" OAL.)
$100.00
