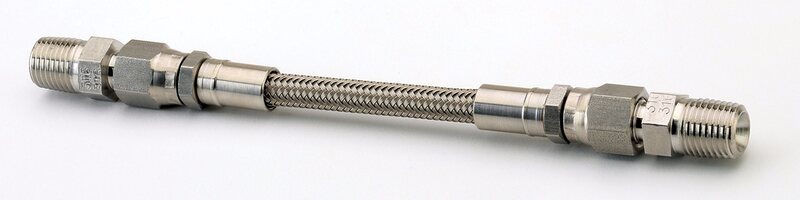

Male Pipe Union x Male Pipe Union
|
Hose Size
Hose ID
Prefix
Assembly Number
Thread Size
|
|
Hose Size
-3
Hose ID
5/32
Prefix
TFx
Assembly Number
503
Thread Size
1/8-27 - 1/8-27
|
|
Hose Size
-4
Hose ID
3/16
Prefix
TFx
Assembly Number
504
Thread Size
1/8-27 - 1/8-27
|
|
Hose Size
-4
Hose ID
3/16
Prefix
TFx
Assembly Number
604
Thread Size
1/4-18 - 1/4-18
|
|
Hose Size
-5
Hose ID
1/4
Prefix
TFx
Assembly Number
505
Thread Size
1/4-18 - 1/4-18
|
|
Hose Size
-6
Hose ID
5/16
Prefix
TFx
Assembly Number
506
Thread Size
1/4-18 - 1/4-18
|
|
Hose Size
-6
Hose ID
5/16
Prefix
TFx
Assembly Number
606
Thread Size
3/8-18 - 3/8-18
|
|
Hose Size
-8
Hose ID
13/32
Prefix
TFx
Assembly Number
508
Thread Size
3/8-18 - 3/8-18
|
|
Hose Size
-8
Hose ID
13/32
Prefix
TFx
Assembly Number
608
Thread Size
1/2-14 - 1/2-14
|
|
Hose Size
-10
Hose ID
1/2
Prefix
TFx
Assembly Number
510
Thread Size
1/2-14 - 1/2-14
|
|
Hose Size
-12
Hose ID
5/8
Prefix
TFx
Assembly Number
512
Thread Size
3/4-14 - 3/4-14
|
|
Hose Size
-16
Hose ID
7/8
Prefix
TFx
Assembly Number
516
Thread Size
1-11.5 - 1-11.5
|
|
Hose Size
-16Z
Hose ID
7/8
Prefix
TFx
Assembly Number
516Z
Thread Size
1-11.5 - 1-11.5
|
|
Hose Size
-20Z
Hose ID
1.125
Prefix
TFx
Assembly Number
520Z
Thread Size
1¼-11.5 - 1¼-11.5
|
To add hose assemblies to quote request, provide the following:
1. Item Qty
2. Letter Prefix
TFB = Brass Fittings
TFZ = Carbon Steel Fitting
TF3 = Stainless Steel Fittings
3. Assembly Number
4. Length in Inches
Example: 5 x TFB905-82" (5 x SS braided -5 hose with 1/2-20 Brass JIC Swivel each end 82" OAL.)
$100.00
