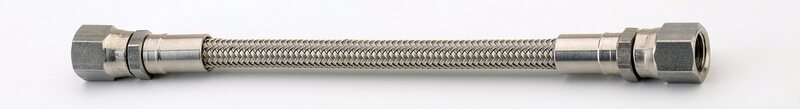

JIC Swivel x JIC Swivel
|
Hose Size
Hose ID
Prefix
Assembly Number
Thread Size
|
|
Hose Size
-3
Hose ID
5/32
Prefix
TFx
Assembly Number
903
Thread Size
3/8-24
|
|
Hose Size
-4
Hose ID
3/16
Prefix
TFx
Assembly Number
904
Thread Size
7/16-20
|
|
Hose Size
-5
Hose ID
1/4
Prefix
TFx
Assembly Number
905
Thread Size
1/2-20
|
|
Hose Size
-6
Hose ID
5/16
Prefix
TFx
Assembly Number
906
Thread Size
9/16-20
|
|
Hose Size
-8
Hose ID
11/32
Prefix
TFx
Assembly Number
908
Thread Size
3/4-16
|
|
Hose Size
-10
Hose ID
1/2
Prefix
TFx
Assembly Number
910
Thread Size
7/8-14
|
|
Hose Size
-12
Hose ID
5/8
Prefix
TFx
Assembly Number
912
Thread Size
1 1/16-12
|
|
Hose Size
-16
Hose ID
7/8
Prefix
TFx
Assembly Number
916
Thread Size
1 5/16-12
|
|
Hose Size
-16Z
Hose ID
7/8
Prefix
TFx
Assembly Number
916Z
Thread Size
1 5/16-12
|
|
Hose Size
-20Z
Hose ID
1.125
Prefix
TFx
Assembly Number
920Z
Thread Size
1 5/8-12
|
To add hose assemblies to quote request, provide the following:
1. Item Qty
2. Letter Prefix
TFB = Brass Fittings
TFZ = Carbon Steel Fitting
TF3 = Stainless Steel Fittings
3. Assembly Number
4. Length in Inches
Example: 5 x TFB905-82" (5 x SS braided -5 hose with 1/2-20 Brass JIC Swivel each end 82" OAL.)
$100.00
