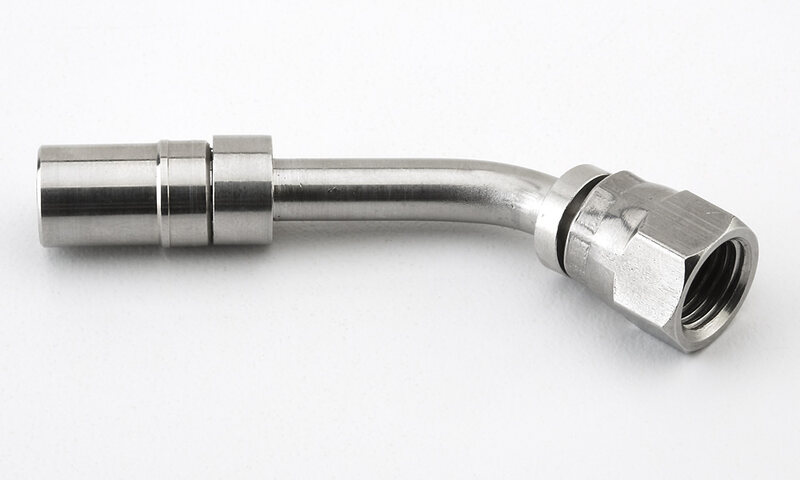

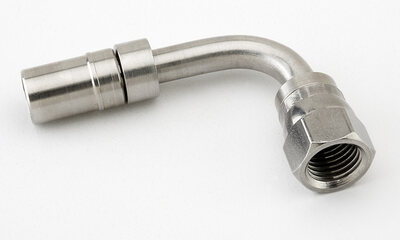

45° 90° SS Fitting

Part Number

Hose Dash Size

Thread Size

Overall Length A (in.)

Nomical I.D. (in.)

Deduct Length D (in.)

Quote Request Qty

Part NumberTF45-08-3

Hose Dash Size-08

Thread Size3/4-16

Overall Length A (in.)3.30

Nomical I.D. (in.)0.359

Deduct Length D (in.)2.70

Quote Request Qty

Part NumberTF45-06-3

Hose Dash Size-06

Thread Size9/16-18

Overall Length A (in.)2.70

Nomical I.D. (in.)0.265

Deduct Length D (in.)2.25

Quote Request Qty

Part NumberTF45-04-3

Hose Dash Size-04

Thread Size7/16-20

Overall Length A (in.)2.70

Nomical I.D. (in.)0.156

Deduct Length D (in.)2.25

Quote Request Qty

Part NumberTF90-08-3

Hose Dash Size-08

Thread Size3/4-16

Overall Length A (in.)2.50

Nomical I.D. (in.)0.359

Deduct Length D (in.)1.80

Quote Request Qty

Part NumberTF90-06-3

Hose Dash Size-06

Thread Size9/16-18

Overall Length A (in.)2.20

Nomical I.D. (in.)0.265

Deduct Length D (in.)1.70

Quote Request Qty

Part NumberTF90-04-3

Hose Dash Size-04

Thread Size7/16-20

Overall Length A (in.)2.00

Nomical I.D. (in.)0.156

Deduct Length D (in.)1.525

Quote Request Qty

Add to Quote Request ⇨ View Your Quote Request
