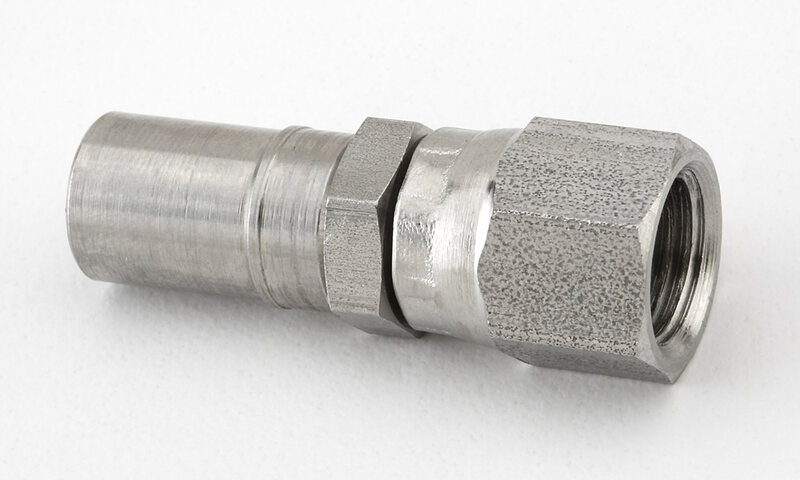

37°/45° Swivel

Grouped product items
Product	Qty
Part Number Hose Dash Size Thread Size Overall Length A (in.) Nomical I.D. (in.) Deduct Length D (in.)	Quote Request Qty
Part NumberTF603-03-x Hose Dash Size-03 Thread Size3/8-24 Overall Length A (in.)1.09 Nomical I.D. (in.)0.095 Deduct Length D (in.)0.65	Quote Request Qty
Part NumberTF603-04-x Hose Dash Size-03 Thread Size7/16-20 Overall Length A (in.)1.11 Nomical I.D. (in.)0.156 Deduct Length D (in.)0.67	Quote Request Qty
Part NumberTF604-04-x Hose Dash Size-04 Thread Size7/16-20 Overall Length A (in.)1.20 Nomical I.D. (in.)0.156 Deduct Length D (in.)0.76	Quote Request Qty
Part NumberTF605-04-x Hose Dash Size-05 Thread Size7/16-20 Overall Length A (in.)1.20 Nomical I.D. (in.)0.201 Deduct Length D (in.)0.76	Quote Request Qty
Part NumberTF605-05-x Hose Dash Size-05 Thread Size1/2-20 Overall Length A (in.)1.20 Nomical I.D. (in.)0.201 Deduct Length D (in.)0.76	Quote Request Qty
Part NumberTF606-06-x¹ Hose Dash Size-06 Thread Size9/16-18 Overall Length A (in.)1.34 Nomical I.D. (in.)0.265 Deduct Length D (in.)0.83	Quote Request Qty
Part NumberTF406-06-x² Hose Dash Size-06 Thread Size5/8-18 Overall Length A (in.)1.34 Nomical I.D. (in.)0.265 Deduct Length D (in.)0.83	Quote Request Qty
Part NumberTF608-08-x Hose Dash Size-08 Thread Size3/4-16 Overall Length A (in.)1.66 Nomical I.D. (in.)0.359 Deduct Length D (in.)1.04	Quote Request Qty
Part NumberTF610-10-x Hose Dash Size-10 Thread Size7/8-14 Overall Length A (in.)1.69 Nomical I.D. (in.)0.453 Deduct Length D (in.)1.02	Quote Request Qty
Part NumberTF612-12-x¹ Hose Dash Size-12 Thread Size1 1/16-12 Overall Length A (in.)1.91 Nomical I.D. (in.)0.578 Deduct Length D (in.)1.17	Quote Request Qty
Part NumberTF412-12-x² Hose Dash Size-12 Thread Size1 1/16-14 Overall Length A (in.)1.91 Nomical I.D. (in.)0.578 Deduct Length D (in.)1.17	Quote Request Qty
Part NumberTF616-16-x Hose Dash Size-16 Thread Size1 5/16-12 Overall Length A (in.)2.34 Nomical I.D. (in.)0.812 Deduct Length D (in.)1.18	Quote Request Qty
Part NumberTF616-16-x Hose Dash Size-16Z Thread Size1 5/16-12 Overall Length A (in.)2.34 Nomical I.D. (in.)0.812 Deduct Length D (in.)1.18	Quote Request Qty
Part NumberTF620-20-x Hose Dash Size-20Z Thread Size1 5/8-12 Overall Length A (in.)3.30 Nomical I.D. (in.)1.00 Deduct Length D (in.)2.064	Quote Request Qty

Product Details

¹ = 37° JIC seat
² = 45° SAE seat
