During the late 1930s at the Dupont
Laboratories, Polytetrafluoroethylene or PTFE was
discovered. Since then, PTFE has proven to be a unique
plastic for many varied applications.

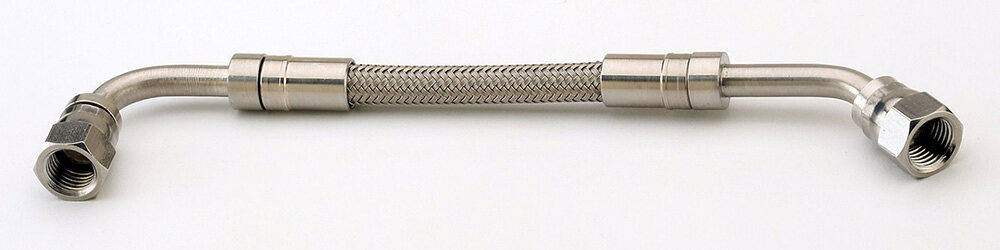

At Techflex Enterprises our smoothbore PTFE tubing is
reinforced with an outer braid of 304 stainless steel to
produce a high quality hose that is:
|
- Flexible, strong and able to
withstand thousands of flex cycles.
- Inert and resistant to most
chemical attack with few exceptions.
- Heat resistant to a wide
operating temperature range
• -65°F to 450°F continuous service
• -100°F to 500°F intermittent service
- Non-sticking and non-wetting;
providing for easier product flow, hose purging
or cleaning.
- Ageless, since PTFE is
unaffected by weather, sunlight or time.
- Designed to meet your
requirements.
|
|
Techflex Enterprise PTFE hose
offers a solution to a variety of applications in the
industrial, automotive, chemical, and pharmaceutical
environments where temperature and chemical attack
restrict the use of alternative materials.
|
|
Smoothbore PTFE Hose |
|
Hose
Part
Number |
Hose
Dash
Size |
Tube
Wall
(in.) |
Avg.
I.D.
(in.) |
Avg.
O.D.
(in.) |
Working
Pressure
(psi) |
Burst
Press. @70°F (psi) |
Min. Bend
Radius
(in.)* |
Hose
Weight
(lbs/ft) |
|
S1003 |
-03 |
.040 |
.125 |
.250 |
3,000 |
12,000 |
1.5 |
.050 |
|
S1004 |
-04 |
.040 |
.187 |
.320 |
3,000 |
12,000 |
1.7 |
.078 |
|
S1005 |
-05 |
.040 |
.250 |
.375 |
3,000 |
12,000 |
2.5 |
.095 |
|
S1006 |
-06 |
.040 |
.312 |
.435 |
2,500 |
10,000 |
3.5 |
.110 |
|
S1008 |
-08 |
.043 |
.406 |
.565 |
2,000 |
8,000 |
5 |
.125 |
|
S1010 |
-10 |
.047 |
.500 |
.656 |
1,500 |
6,000 |
6 |
.151 |
|
S1012 |
-12 |
.047 |
.625 |
.780 |
1,250 |
5,000 |
7 |
.160 |
|
S1016 |
-16 |
.047 |
.875 |
1.050 |
1,000 |
4,000 |
9 |
.273 |
* Bend Radius values at room temperature and
static application.
Vacuum: Full vacuum for sizes -03 thru -08
at room temperature. |
|
|
|
Special Needs?
We
are continuously working on the expansion of our
standard line of hose.
If you have special needs, give us a call.
With over 100 years of combined experience in the
industry, we will do our best to help you. |
|
|
|
|
